Helical Piles & Installation Tools
Two product ranges designed and manufactured in Finland. From utility-scale energy projects to your garden terrace, you choose the foundation that matches your requirements.
PRO and HELIX Series: Your Complete Helical Pile Solution
At Paalupiste, we design and manufacture our own PRO and HELIX series helical piles in Finland. Whether your project demands industrial load capacity or a simple DIY terrace foundation, you get Finnish-made quality backed by over 25 years of engineering experience and more than 2,500 delivered projects across multiple countries.
PRO Screw Piles by Paalupiste
Designed for larger structures and demanding load requirements, PRO screw piles give you a versatile, high-performance foundation solution. Your project benefits from fast installation, minimal site disturbance, and verified load capacity at every pile.
Standard tube diameters range from 60.3 mm to 323.4 mm with helix sizes from 150 mm to 1,000 mm. Custom dimensions are available for any project that falls outside the standard range.
- Load capacity verified up to 1,000 kN per pile
- High-strength SSAB steel, EN 1090 certified manufacturing
- Standard tubes: 60.3 mm, 76.1 mm, 88.9 mm, 114.3 mm, 139.7 mm, 168.3 mm, 219.1 mm, 273.0 mm, 323.4 mm
- Helice diameters: 150 mm to 1,000 mm
- Custom sizes manufactured to your specification
- Plain finish or hot-dip galvanized corrosion protection
GUARANTEE
Fast Installation
Your project saves on labour and equipment costs. Screw piles are installed in minutes, not days. Building starts immediately after the last pile is in.
No Large-Scale Earthworks
You skip excavation, frost insulation, drainage, and casting. Fewer work phases mean fewer risks, lower costs, and a simpler project.
Inexpensive to Transport and Store
Screw piles are compact and stackable. Your logistics costs stay low, and storage on site is straightforward even in tight spaces.
Ideal for Remote Locations
Lightweight piles fit on standard transport. You reach difficult sites without heavy machinery convoys or special access roads.
High Load Capacity Saves Pile Length
Up to 1,000 kN per pile. The helix transfers load directly to bearing soil, so you need fewer and shorter piles for your structure.
Often Requires Only One Site Visit
Installation, load verification, and handover completed in a single mobilisation. Your project timeline shrinks and coordination stays simple.
Compact Installation Machinery
Your site stays accessible. Small excavators with hydraulic drive heads handle the installation, reducing ground pressure and site impact.
Your Site Stays Clean and Undamaged
Zero concrete, zero excavation waste. The environment around your foundation remains intact. 100% removable and recyclable steel.
- Buildings and Industrial Construction: Industrial and commercial buildings, warehouses and halls, modular and prefabricated building structures, air-supported structures (air domes), temporary buildings and site facilities

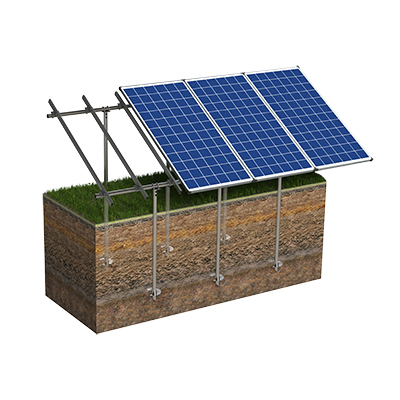

- Energy and Utility Infrastructure: Solar parks and renewable energy projects, powerlines, substations and BESS, 5G and telecommunications masts, oil, gas and district heating pipelines
- Road, Rail and Transport Structures: Road and rail portals and gantries, signage, traffic control and roadside structures, platforms and service walkways, noise barriers
- Technical Structures and Installations: Lighting poles and masts, EV charging stations, fencing and gates, shelters and protective canopies, advertising and information structures
- Residential and Housing Construction: Houses and extensions, holiday cabins and cabin developments
- Challenging, Remote and Sensitive Sites: Soft soils and peatlands, remote and hard-to-access locations, parks, nature reserves and environmentally sensitive areas, wildlife habitats and nesting areas
Machine-Installed Foundation
PRO series piles are installed using hydraulic drive heads mounted on excavators or dedicated piling rigs. The drive head rotates the pile into the ground while applying controlled downward pressure. Your installation crew monitors torque values in real time, verifying load capacity during the installation process.
- Installation with excavators from 1.5 to 30+ tonnes
- Hydraulic drive heads from 1,300 Nm to 150,000 Nm torque
- Real-time torque monitoring and load verification
- Typical installation rate: 20 to 100+ piles per day
- Works in clay, sand, silt, peat, and soft ground conditions
Turnkey Installation Available
You can purchase piles and install them with your own equipment, or choose our full turnkey service. With turnkey delivery, Paalupiste handles soil investigation, design, manufacturing, installation, and documentation as a single package.
- Experienced installation teams across multiple countries
- Complete documentation and quality records
- Load testing and pile installation reports
- Training available for your own installation crews
| Tube Diameter | Wall Thickness | Helice Range | Typical Applications |
|---|---|---|---|
| 60.3 mm | 2.9 - 5.0 mm | 150 - 250 mm | Fences, signage, light structures |
| 76.1 mm | 4.0 - 6.3 mm | 150 - 300 mm | Terraces, carports, small buildings |
| 88.9 mm | 4.0 - 6.3 mm | 200 - 400 mm | Solar parks, residential buildings |
| 114.3 mm | 4.0 - 8.0 mm | 250 - 500 mm | Commercial buildings, halls |
| 139.7 mm | 5.0 - 8.0 mm | 300 - 600 mm | Industrial structures, power lines |
| 168.3 mm | 5.0 - 10.0 mm | 350 - 700 mm | Large commercial, noise barriers |
| 219.1 mm | 6.3 - 12.5 mm | 400 - 800 mm | Heavy industrial, warehouses |
| 273.0 mm | 6.3 - 12.5 mm | 500 - 900 mm | Bridges, heavy infrastructure |
| 323.4 mm | 8.0 - 12.5 mm | 600 - 1,000 mm | Maximum load applications |
Each pile is manufactured to project specifications: helix size, number of helices, pile length and surface treatment are selected per project. All piles made from high-strength SSAB steel with full material traceability. Contact us for engineering support.
HELIX Screw Piles by Paalupiste
Designed for smaller structures and DIY projects, HELIX screw piles give you a professional-grade foundation that you can install yourself. No excavation, no concrete, no heavy machinery. Your terrace, fence, garden building, or pier gets a stable, long-lasting foundation in hours instead of days.
HELIX piles are our 2nd generation design with a cast steel head and optimised helice geometry for easier manual installation. Available in standard lengths from 0.70 m to 3.20 m with a 160 mm helice diameter. Available in plain finish or hot-dip galvanized for lasting corrosion protection.
- Manual installation by hand or with a simple electric drill
- Standard lengths: 0.70 m, 1.20 m, 1.70 m, 2.20 m, 3.20 m
- Helice diameter: 160 mm (2nd generation cast steel head)
- Plain finish or hot-dip galvanized corrosion protection
- Available through local distributors across Europe
- No concrete, no excavation, no special tools needed
GUARANTEE
Electric drill
Install It Yourself
You do not need heavy machinery or professional crews. One or two people install HELIX piles by hand or with a standard electric drill. Your project stays in your control.
Foundation Ready in Hours
A typical terrace foundation takes 2 to 4 hours. You start building the same day. No waiting for concrete to cure, no scheduling excavation equipment.
Cast Steel Head
Our 2nd generation HELIX features a cast steel head that cuts through soil and navigates roots better than traditional models. More durable than traditional helices, with better grip and higher stability for your finished foundation.
Clean, Zero-Waste Installation
No mixing, no pouring, no mess. Your garden and yard stay undamaged. Remove and reuse the piles if you ever change your plans.
50-Year Galvanized Protection
Hot zinc galvanization protects every pile against corrosion for decades. Your foundation lasts as long as your structure, guaranteed for 50 years.
Available through Local Distributors
HELIX piles available through your local Paalupiste distributor. No distributor in your country? Contact us directly. Short lead time.
Level Foundation on Uneven Ground
Screw depth is adjustable. You compensate for slopes and uneven terrain by simply screwing each pile to the right height. Your structure sits level.
Brackets for Every Structure Type
A full range of brackets and adapters connects your pile to timber, steel, or concrete. Your design options stay open from the start.

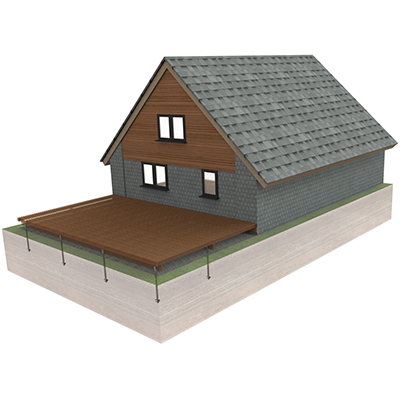

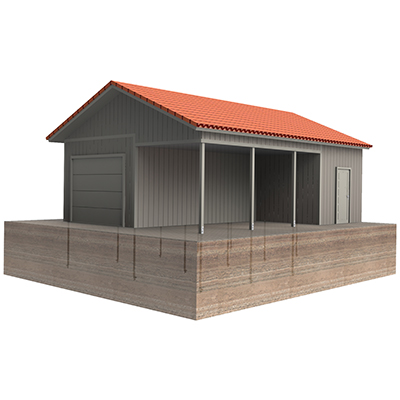

- Residential and Housing Construction: Garden sheds, carports and auxiliary buildings, decks and terraces, piers, docks and small waterfront structures, DIY and small contractor projects

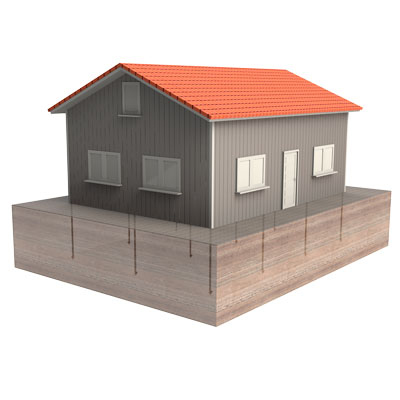

- Holiday and Cabin Construction: Holiday cabins and cabin developments, sauna platforms, outdoor living spaces

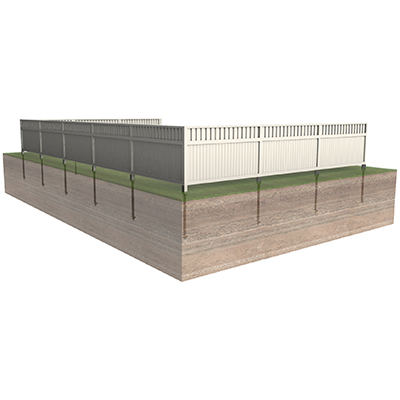

- Technical Structures: Fencing and gates, shelters and protective canopies, advertising and information structures, lighting poles
Your HELIX foundation is ready in 3 simple steps. No heavy equipment, no concrete curing. Install by hand with the included SR100 kit or with a standard electric drill for faster results.

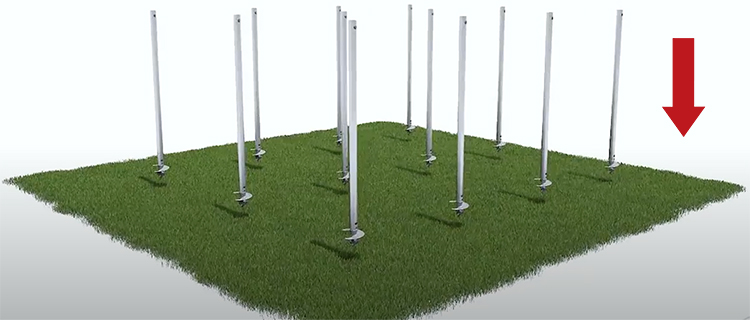

Create a Pilot Hole and Position the Pile
Begin by creating a pilot hole using a crowbar. Place the HELIX pile vertically into the hole and turn it clockwise using a crowbar or the SR100 installation kit with two people working together.

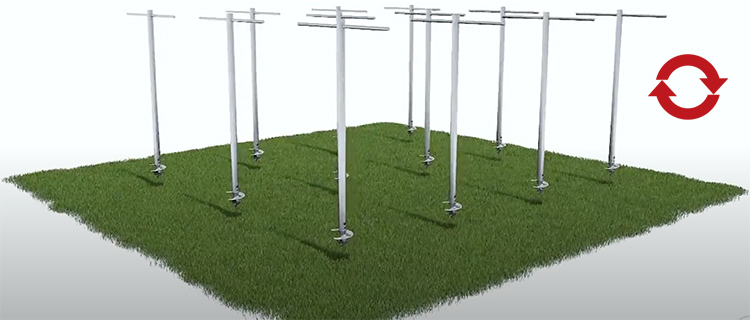

Tighten the Pile and Set to Level
Apply the SR100 installation kit with two people or use an electric pile driver. Tighten the pile into the ground until it reaches solid bearing soil. Check level across all piles and adjust depth as needed. Attach the bracket on top of each pile.

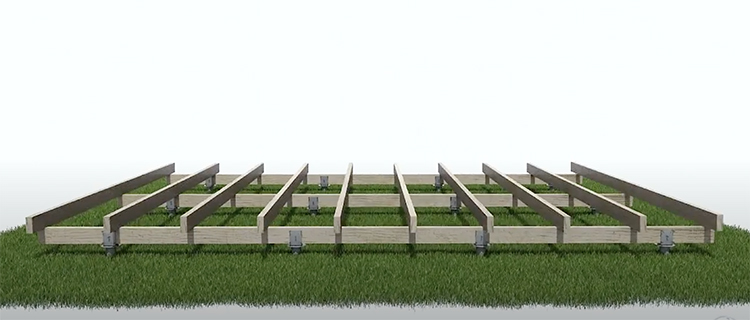

Attach the Bracket and Start Building
Once all piles are set and levelled, attach your chosen bracket or adapter on top. Start building your frame structure immediately. No drying time, no curing, no waiting.
Installation Methods
- SR100 installation kit for manual installation
- Compatible with standard electric or cordless drills
- One person can install a pile in 5 to 15 minutes
- Works in clay, sand, silt, peat, and soft garden soil
- Adjustable depth for levelling on slopes
- No concrete, no excavation, no curing time
| Length | Tube Diameter | Helice Diameter | Typical Use |
|---|---|---|---|
| 0.70 m | 60.3 mm | 160 mm | Fences, raised beds, light structures |
| 1.20 m | 60.3 mm | 160 mm | Terraces, carports, garden buildings |
| 1.70 m | 60.3 mm | 160 mm | Deeper frost line, medium structures |

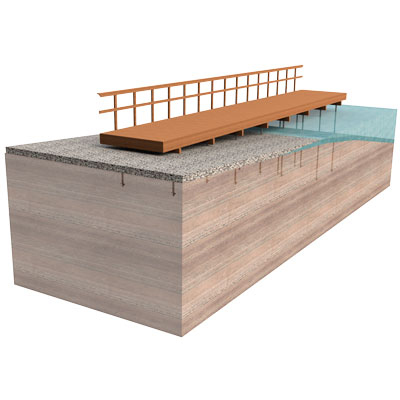

| 2.20 m | 60.3 mm | 160 mm | Soft soil, piers, larger terraces |
| 3.20 m | 60.3 mm | 160 mm | Maximum depth for soft soil conditions |
HELIX piles are available in plain finish or hot-dip galvanized with 50-year corrosion guarantee. Available individually or in project packs. Contact your local Paalupiste distributor for availability, or reach out to us directly.
Multiple Reasons Why Helical Piles Are the Smart Foundation Choice
Compared to traditional concrete foundations, helical piles deliver measurable advantages across cost, time, sustainability, and site access.
Save Time & Money
- Up to 50-70% faster project delivery compared to cast-in-place foundations
- Up to 50% lower total foundation costs when you factor in reduced work phases
- No excavation, backfill, or spoil removal expenses on your budget
- Your building can start immediately after the last pile is installed
- Fewer work phases means fewer subcontractors and simpler coordination
Reduces Environmental Impact
- about 80% lower CO₂ emissions compared to concrete foundations
- Zero concrete production and zero excavation waste on your site
- Minimal ground disturbance preserves the natural soil structure
- 100% recyclable steel that can be removed and reused
- Your project meets sustainability targets without performance compromise
Versatile Applications
- Wide range of tube and helix sizes for loads from light fences to heavy industrial structures
- Works in clay, sand, silt, peat, and small-grained moraine soil conditions
- Suitable for both temporary and permanent structures
- Supports compression, tension, and lateral loads
- Custom configurations match your specific engineering requirements
- Available for both machine-installed and manual DIY installation
- Load capacity verified during installation with real-time torque monitoring
- Proven performance across multiple countries and more than 2,500 projects
Ideal for Confined or Tight Spaces
- Compact installation equipment fits where concrete trucks and large excavators cannot
- Minimal access width required for your installation machinery
- Low-noise, vibration-free process works near existing structures
- No large staging areas needed for materials or equipment
- Your neighbouring structures and landscaping remain undisturbed
- Install year-round, including winter conditions with frozen surface soil
The Right Drive Head for Every Pile and Every Site
Your installation efficiency depends on the equipment. We supply drive heads, alignment systems, and complete drill packages for every pile size and excavator class.

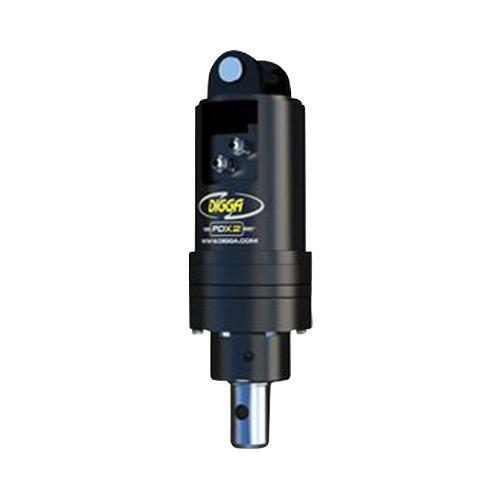

Digga Drive Heads
Professional hydraulic drive heads for excavators from 1.5 to 50 tonnes. Your crew gets consistent torque delivery and reliable performance across all soil conditions.
HyperTorq+
Our own installation equipment line, engineered specifically for Paalupiste screw piles. Optimised gear ratios and mounting systems for maximum installation speed on your site.
Digga HALO Alignment System
Digital alignment guidance ensures your piles go in straight. Real-time feedback on the display helps your operator maintain vertical accuracy throughout installation.
Purchase or Rent: You Choose
Whether you need equipment for a single project or ongoing operations, we have the right option for your business.
Purchase
Own your installation equipment outright. Full control over scheduling, maintenance, and utilisation. Your investment pays back project after project.
- Full ownership and equipment control
- Available whenever your schedule demands
- Training and ongoing technical support included
- Spare parts and service from Paalupiste
- Best value for regular installation operations
Rental
Flexible, project-based equipment access. You get the right drive head for each job without capital commitment. Ideal for testing screw pile installation or handling peak demand.
- No capital investment required
- Right equipment matched to each project
- Short-term and long-term rental periods
- Delivery and collection arranged by Paalupiste
- Try before you buy with rental-to-purchase options
